SOAP API design lookup service
The SOAP API design lookup service asset manages the lookup functions of the SOAP server, including applying and removing designs and paint layouts.
To add a SOAP API design lookup service, go to . For the API to work, it must be created under a SOAP server within the web services folder, as shown. The API will then be available to enable on the Details screen of the SOAP server, as shown in the figure.
You can configure the settings of the SOAP API design lookup service on its associated asset screens. The majority of these screens are similar to those for a standard page. They are described in the Asset screens documentation. In this documentation, we will describe the Details screen, which is different for a SOAP API design lookup service.
Details screen
The Details screen allows you to configure the interface functions for the SOAP API design lookup service.
Read the Asset screens documentation for more information about the Status, Future status, Thumbnail, and Details sections

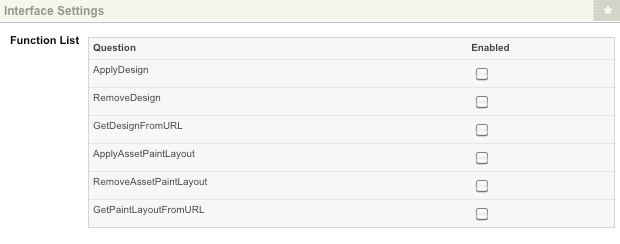

Interface settings
This section allows you to control which functions the SOAP API design lookup service will provide when enabled on a SOAP server. The interface settings section of the Details screen is shown in the figure.
In the function list, select enabled for the functions you want to make available on the API.
Operations
ApplyDesign
ApplyDesignSoapInput (ApplyDesign)
| Elements - Parameter [Param Type] | Description | Min Occurs | Max Occurs | Type |
|---|---|---|---|---|
DesignID [string] |
The asset ID of the design asset to apply. This parameter is mandatory. |
1 |
1 |
simple |
AssetID [string] |
The asset ID of the asset to apply the Design to. This parameter is mandatory. |
1 |
1 |
simple |
DesignType [string] |
The design type of the design to apply. This value can be Frontend, OverrideFrontend, Login, OverrideLogin, UserDefined or OverrideUserDefined. This parameter is mandatory. |
1 |
1 |
simple |
UserDefinedDesignName [string] |
The user defined design name, when applying a user-defined design. |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:ApplyDesign>
<DesignID>150</DesignID>
<AssetID>100</AssetID>
<DesignType>UserDefined</DesignType>
<UserDefinedDesignName>my_design</UserDefinedDesignName>
</ns1:ApplyDesign>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>ApplyDesignSoapOutput (ApplyDesignResponse)
| Elements - Parameter [Param Type] | Min Occurs | Max Occurs | Type |
|---|---|---|---|
ApplyDesignResult [boolean] |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:ApplyDesignResponse>
<ApplyDesignResult>true</ApplyDesignResult>
</ns1:ApplyDesignResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>RemoveDesign
RemoveDesignSoapInput (RemoveDesign)
| Elements - Parameter [Param Type] | Description | Min Occurs | Max Occurs | Type |
|---|---|---|---|---|
DesignID [string] |
The asset ID of the design asset to remove. This parameter is mandatory. |
1 |
1 |
simple |
AssetID [string] |
The asset ID of the asset from which to remove the design. This parameter is mandatory. |
1 |
1 |
simple |
DesignType [string] |
The design type of the design to remove. This value can be Frontend, OverrideFrontend, Login, OverrideLogin, UserDefined or OverrideUserDefined. |
0 |
1 |
simple |
UserDefinedDesignName [string] |
The user defined design name, when removing a user-defined design. |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:RemoveDesign>
<DesignID>150</DesignID>
<AssetID>100</AssetID>
<DesignType>Frontend</DesignType>
</ns1:RemoveDesign>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>RemoveDesignSoapOutput (RemoveDesignResponse)
| Elements - Parameter [Param Type] | Min Occurs | Max Occurs | Type |
|---|---|---|---|
RemoveDesignResult [boolean] |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:RemoveDesignResponse>
<RemoveDesignResult>true</RemoveDesignResult>
</ns1:RemoveDesignResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>GetDesignFromURL
GetDesignFromURLInput (GetDesignFromURL)
| Elements - Parameter [Param Type] | Description | Min Occurs | Max Occurs | Type |
|---|---|---|---|---|
URL [string] |
The URL to query, excluding the HTTP protocol. For example \www.mysite.com/page or \mysite.com/site1/page. This parameter is mandatory. |
1 |
1 |
simple |
DesignType [string] |
The design type of the design to return. This allows you to specify the design type when an asset has multiple designs. This value can be Frontend, OverrideFrontend, Login, OverrideLogin, UserDefined or OverrideUserDefined. |
0 |
1 |
simple |
UserDefinedDesignName [string] |
The user-defined design name, when returning a user-defined design. |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:GetDesignFromURL>
<URL>www.example.com</URL>
<DesignType>UserDefined</DesignType>
<UserDefinedDesignName>my_design</UserDefinedDesignName>
</ns1:GetDesignFromURL>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>GetDesignFromURLOutput (GetDesignFromURLResponse)
| Elements - Parameter [Param Type] | Min Occurs | Max Occurs | Type |
|---|---|---|---|
GetDesignFromURLResult [DesignLinkSummary] |
0 |
1 |
complex |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:GetDesignFromURLResponse>
<GetDesignFromURLResult>
<DesignID>27</DesignID>
<TypeCode>ees_login_design</TypeCode>
</GetDesignFromURLResult>
</ns1:GetDesignFromURLResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>ApplyAssetPaintLayout
ApplyAssetPaintLayoutInput (ApplyAssetPaintLayout)
| Elements - Parameter [Param Type] | Description | Min Occurs | Max Occurs | Type |
|---|---|---|---|---|
PaintLayoutID [string] |
The asset ID of the paint layout asset to apply. This parameter is mandatory. |
1 |
1 |
simple |
AssetID [string] |
The asset ID of the asset to apply the Paint Layout to. |
0 |
1 |
simple |
PaintLayoutType [string] |
The paint layout type of the paint Layout to apply. This allows you to specify the paint layout type when an asset has multiple paint layouts. This value can be OverrideFrontend, Frontend or UserDefined. This parameter is mandatory. |
1 |
1 |
simple |
AssetURL [string] |
The URL of the asset to apply the paint layout to. This parameter is useful when applying a URL specific paint layout. |
0 |
1 |
simple |
PaintLayoutCode [string] |
The paint layout code to set on the paint layout being applied. This parameter is useful when applying a UserDefined paint layout. |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:ApplyAssetPaintLayout>
<PaintLayoutID>150</PaintLayoutID>
<AssetID>100</AssetID>
<PaintLayoutType>UserDefined</PaintLayoutType>
<AssetURL>www.example.com/site</AssetURL>
<PaintLayoutCode>User1</PaintLayoutCode>
</ns1:ApplyAssetPaintLayout>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>ApplyAssetPaintLayoutOutput (ApplyAssetPaintLayoutResponse)
| Elements - Parameter [Param Type] | Min Occurs | Max Occurs | Type |
|---|---|---|---|
ApplyAssetPaintLayoutResult [boolean] |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:ApplyAssetPaintLayoutResponse>
<ApplyAssetPaintLayoutResult>true</ApplyAssetPaintLayoutResult>
</ns1:ApplyAssetPaintLayoutResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>RemoveAssetPaintLayout
RemoveAssetPaintLayoutInput (RemoveAssetPaintLayout)
| Elements - Parameter [Param Type] | Description | Min Occurs | Max Occurs | Type |
|---|---|---|---|---|
PaintLayoutID [string] |
The asset ID of the paint layout asset to remove. This parameter is mandatory. |
1 |
1 |
simple |
AssetID [string] |
The asset ID of the asset to remove the paint layout from. |
0 |
1 |
simple |
PaintLayoutType [string] |
The paint layout type of the paint layout to remove. This allows you to specify the paint layout type when an asset has multiple paint layouts. This value can be OverrideFrontend, Frontend or UserDefined. This parameter is mandatory. |
1 |
1 |
simple |
AssetURL [string] |
The URL of the asset to remove the paint layout from. This parameter is useful when removing a URL specific paint layout. |
0 |
1 |
simple |
PaintLayoutCode [string] |
The paint layout code of the paint layout being removed. This parameter is useful when removing a UserDefined paint layout. |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:RemoveAssetPaintLayout>
<PaintLayoutID>150</PaintLayoutID>
<AssetID>100</AssetID>
<PaintLayoutType>Frontend</PaintLayoutType>
<AssetURL>www.example.com/site</AssetURL>
</ns1:RemoveAssetPaintLayout>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>RemoveAssetPaintLayoutOutput (RemoveAssetPaintLayoutResponse)
| Elements - Parameter [Param Type] | Min Occurs | Max Occurs | Type |
|---|---|---|---|
RemoveAssetPaintLayoutResult [boolean] |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:RemoveAssetPaintLayoutResponse>
<RemoveAssetPaintLayoutResult>true</RemoveAssetPaintLayoutResult>
</ns1:RemoveAssetPaintLayoutResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>GetPaintLayoutFromURL
GetPaintLayoutFromURLInput (GetPaintLayoutFromURL)
| Elements - Parameter [Param Type] | Description | Min Occurs | Max Occurs | Type |
|---|---|---|---|---|
URL [string] |
The URL to return the paint layout asset from. This parameter is mandatory. |
1 |
1 |
simple |
PaintLayoutType [string] |
The paint layout type of the paint layout to return. This allows you to specify the paint layout type when an asset has multiple paint layouts. This value can be OverrideFrontend, Frontend or UserDefined. This parameter is mandatory. |
1 |
1 |
simple |
PaintLayoutCode [string] |
The paint layout code of the paint layout to return. This parameter is useful when removing a UserDefined paint layout. |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:GetPaintLayoutFromURL>
<URL>www.example.com/site</URL>
<PaintLayoutType>Frontend</PaintLayoutType>
</ns1:GetPaintLayoutFromURL>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>GetPaintLayoutFromURLOutput (GetPaintLayoutFromURLResponse)
| Elements - Parameter [Param Type] | Min Occurs | Max Occurs | Type |
|---|---|---|---|
GetPaintLayoutFromURLResult [string] |
0 |
1 |
simple |
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ns1="http://SYSTEM_ROOT_URL/_web_services/soap-server">
<SOAP-ENV:Body>
<ns1:GetPaintLayoutFromURLResponse>
<AssetID>240</AssetID>
</ns1:GetPaintLayoutFromURLResponse>
</SOAP-ENV:Body>
</SOAP-ENV:Envelope>
